Operating ambient temperatures
Suggested retail price
Energy Efficiency
Technology
Hydrophilic Aluminium Fin
Increased wettability of the heat exchanger, aluminum plates which have a special coating with a hydrophilic layer, ensuring rapid removal of condensate from the indoor unit that does not allow to rapidly form mold and bacteria while providing a more efficient operation of the air conditioner.
Multi-Bend Heat Exchanger
Increased heat. This unit uses the heat exchangers with tubes of a special design, the inner surface of which has trapezoidal notches "Innergrove cooper", which provides maximum heat transfer surface area increased. Due to this heat increases by 28%, reduced power consumption, and hence increases the efficiency of the system.
Silence
The "Silence" - air conditioning reduces the fan speed of the indoor unit to a minimum, with the noise of the air conditioner as well reduced.
Wi-Fi Control
Conditioners can optionally be equipped with a Wi-Fi module that allows the user to monitor and remotely control the air-conditioner from a smartphone or tablet from anywhere in the world.
Motor DC inverter indoor unit
The indoor unit is used to rotate the impeller DC - motor. This can significantly reduce noise and power consumption. And also get 12 positions change the speed of the impeller.
Night Mode
Mode is activated with the remote control and provides a comfortable environment for a peaceful and deep sleep during the 7-hour cycle with a temperature change of reference values, as well as setting the minimum noise level and economical energy consumption. After that, the temperature returns to the originally specified value.
Dry Mode
Dry mode automatically selects cooling, based on the difference between fixed and temparaturoy actual room temperature. The temperature is regulated while reducing humidity repeated switching on and off of the cooling and ventilation only. when the dry mode on the remote control shows "Drop"
Full-DC (3D DC-inverter)
All engines compressors and fans in the system are made by DC-inverter technology.
Description

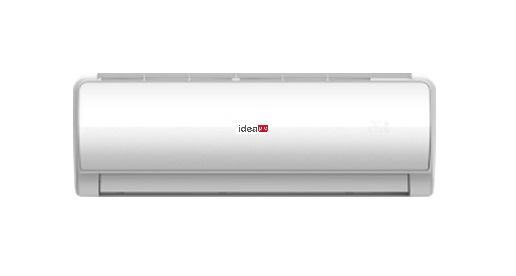

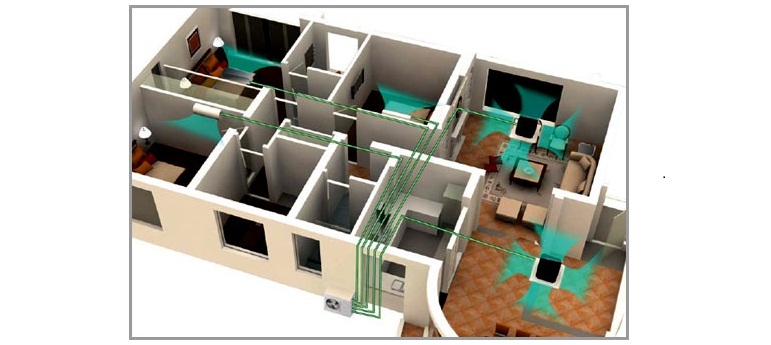

Multi-split systems Idea PRO Series allow you to connect to a single outdoor unit to the indoor unit 5, which reduces the number of outdoor units and allows, thus saving installation space. All indoor units may be controlled separately and is optionally mounted simultaneously (that is convenient for example when the repair in some areas have already been made, and still continues in the other). Wall-mounted indoor units can be optionally equipped with a Wi-Fi control module.
Cutting-edge inverter technology DC sine waves and the technology of active power factor correction ensure low noise and economical operation.
The total length of the route and maskimalnuyu height difference between outdoor and indoor units reaches respectively 60 m and 10 m, which allows you to conveniently place the indoor and outdoor units, making installation simple and flexible system.
Multi-split system can be operated in cooling at low temperatures (up to -10C) in the street.
Attention! If one (or more) of blocks included in the cooling, the remaining indoor units in the mode "heating" switch NOT!
Specifications
Model | ISLI-07PA7-FN1 | ISLI-09PA7-FN1 | ISLI-12PA7-FN1 | ISLI-18PA7-FN1 | ||
Capacity | Cooling | Btu/h | 7165(3855-9220) | 8870(4780-11260) | 12285(5800-12625) | 17745(8530-19790) |
kW | 2.05(1.13-2.70) | 2.55(1.40-3.30) | 3.60(1.70-3.70) | 5.20(2.50-5.80) | ||
Heating | Btu/h | 7510(3340-8530) | 9215(4095-10240) | 12625(5120-12625) | 18085(7680-19790) | |
kW | 2.15(0.98-2.50) | 2.65(1.20-3.00) | 3.70(1.50-3.70) | 5.0(2.25-5.80) | ||
Electric Data | Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 |
Cooling Power Input | W | 40(12~68) | 40(12~68) | 40(12~68) | 63(16~88) | |
Heating Power Input | W | 40(12~68) | 40(12~68) | 40(12~68) | 63(16~88) | |
Performance | Air Flow Volume | CFM | 969 | 969 | 969 | 1700 |
m3/h | 570 | 570 | 570 | 1000 | ||
Sound Pressure Noise Level | dB(A) | 40/38/34 | 40/38/34 | 42/40/36 | 45/42/35 | |
Sound Power Noise Level | dB(A) | 50 | 50 | 50 | 50 | |
Dimension | Net Dimension (W*D*H) | mm | 800×300×198 | 800×300×198 | 800×300×198 | 970×315×235 |
Packing Dimension (W*D*H) | mm | 835x355x255 | 835x355x255 | 835x355x255 | 1010x370x290 | |
Weight | Net | kg | 10 | 10 | 10 | 13 |
Gross | kg | 11,5 | 11,5 | 11,5 | 16 | |
Refrigerant Type | R410a | R410a | R410a | R410a | ||
Pipe Diameter | Liquid Side | mm(inch) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) |
Gas Side | mm(inch) | 9.52(3/8) | 9.52(3/8) | 9.52(3/8) | 12.7(1/2) | |
Drainage | mm | 16,5 | 16,5 | 16,5 | 16,5 |
